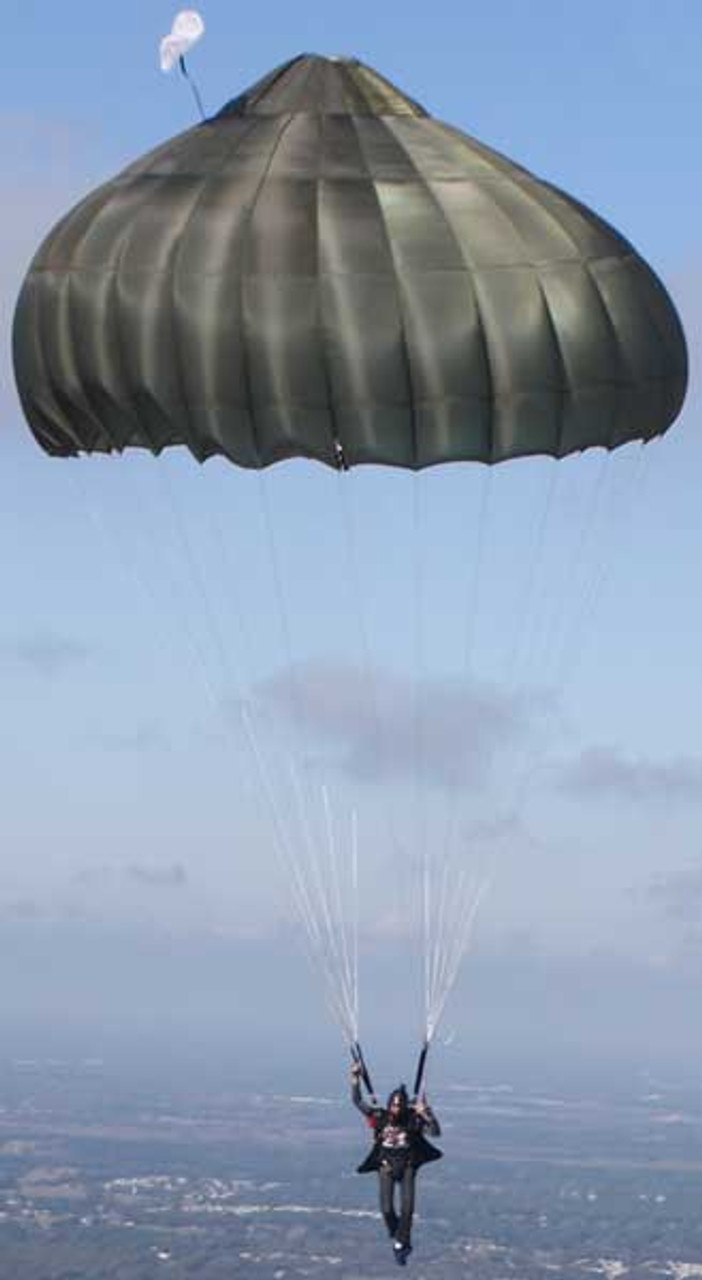

Certified to FAA TSO C-23f, the 30 Foot Conical is rated for exit weights up to 300 lbs and deployment speeds up to 175 knots. Available in 303, 304, 305, 306, 311. Standard in L-39 Chair.
speeds up to 175 knots. Available in 303, 304, 305, 306, 311. Standard in L-39 Chair.
30 Foot Conical Canopy comes with:
- Canopy
- Lines
- Toggles
TSO C-23f & TS-135
- Canopy
- Lines
- Toggles
TSO C-23f & TS-135
| Canopy Shape | Conical | Canopy Material | 30-50 cfm (PIA-C-44378d) | |
| Size | 30′ | 360° Turn Rate | 7-8 sec | |
| Number of Gores | 26 | Forward Speed | 7 mph | |
| Line Length | 20′ | Opening Time | 2 sec | |
| Panels per Gore | 5 | Rate of Descent | 21.1 fps @ 237 lbs (6.4 mps) | |
| Suspension Line Material | Braided Nylon | Canopy Weight | Approx. 12 lbs | |
| Suspension Line Strength | 650 lbs | Maximum Weight | 300 lbs (136 kg) @ 175 knots |
